Pinitech UNO (Single-PCB)
Classic Bally/Stern LED Displays

Full replacement LED display for Classic Bally/Stern pinball machines that breaks away from tradition and is fully contained on a single PCB design allowing for a few tricks of its own. Available as a DIY Kit or Fully Assembled.

If you're a bit OCD like we are with lining things up, maybe you've been driven nuts by seeing displays out of alignment with the display windows in your game. Sometimes digits can be cut-off slightly at the edges or the digits don't line up well with the credit display windows in the backglass. This problem is even more annoying on games like Xenon where the backglass is built into the door. Well, this style of display can help bring you somewhere more Zen. Displays shifted too far to the right or left? No problem, shift them back the opposite way!

Features:

  • NO HIGH VOLTAGE!
  • Low current usage. Displays play nice with the 5v regulator!
  • Straight-forward assembly for DIY'ers with a soldering iron. All new parts!
  • Adjustable Brightness! Set brightness to your liking!
  • Available in 6-digit or 7-digit models (AMBER, BLUE or WHITE digits)
  • Can be mixed with plasma displays if desired
  • Decimal/Dot can be enabled or disabled on both 6-digit and 7-digit displays
  • The UNO design allows you to shift the displays left or right for that perfect ZEN feeling! *UNO-only feature
  • Displays mount with original hardware, with or without the existing display brackets left in place.
  • No worries about displays moving in machine during transportation after installation.

These are great looking LED displays that are energy efficient & low-current usage. Available in AMBER, BLUE and WHITE.
WHITE allows for unlimited color choices using color filters that adhere to the LED digits.

Replacement For: Bally AS-2518-15, Bally AS-2518-21, Bally AS-2518-58, Stern DA-100, Stern DA-300


UNO DESIGN CONSIDERATION **Please Read**

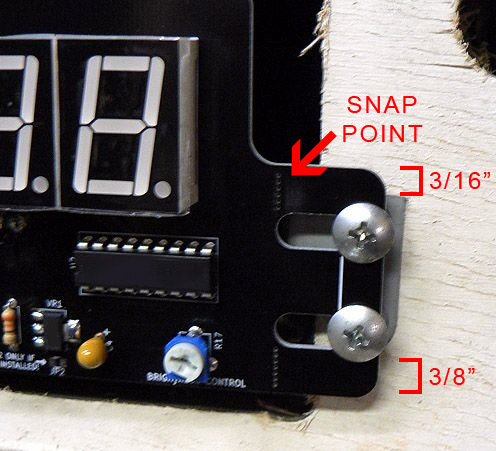

While the Pinitech UNO should work fine for most games, some machines may have lamp surrounds near the brackets that may require one or more UNO displays to be modified. There needs to be roughly 3/16" clearance above the brackets & 3/8" clearance below the brackets to fit. To allow for shifting displays left or right, there also should be room along-side the brackets. See this picture for clearances. It also shows the snap points on the UNO PCBs that can be used if there are clearance issues. Many games will not have any issues with the UNO displays, but you will want to check your game prior to purchasing to see if there is clearance at all the display brackets. For games where many displays have obstructions near the brackets, you will want to consider the Pinitech TRADITIONAL LED Displays.

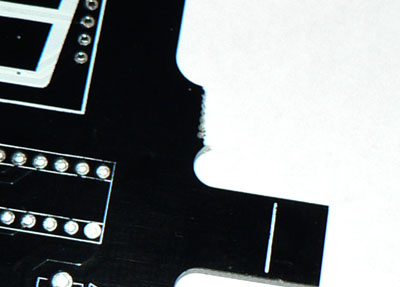

Examples where the UNO would need to be modified to fit properly would be Player #2 display on Strikes and Spares and Player 1-4 displays on Star Trek. In these examples the top tab on the UNO mounting points could be snapped off on the offending side & just the bottom mounting screw gets used on that side of the display.



See more pictures of the Pinitech UNO in-action in this Pinside Thread.


ORDERING INFO

DISPLAYS ARE SOLD IN SETS AS FOLLOWS:
6-DIGIT SET = 5x 6-digit displays
7-DIGIT SET = 4x 7-digit displays + 1x 6-digit display (credit/match)

Note: A few games may require additional displays (ie. Six Million Dollar Man, Elektra, Medusa, Mr & Mrs Pac-Man, Vector, Lightning).
Please contact us directly to order for these machines and we'll create a custom invoice with set discounts factored in.

DIY KITS

DIY Kits include all the components necessary to assemble these great looking displays, while saving you some hard-earned money. You will need basic soldering tools and experience. A temperature-controlled soldering iron is recommended, however you can get by with a 25w soldering iron with a small tip. All new components. Full assembly instructions are included.

ASSEMBLED DISPLAYS

Not a DIY'er? That's okay, we also sell Fully Assembled plug-and-play displays, ready to be installed in your machine.
These are currently built on-demand and will add 2-3 additional business day processing time to your order.

Foam Tape for light blocking around edge of the digits is optional. The tape is not ideal for the UNO design, but it's free if you want it :)


6-DIGIT DISPLAY SETS (DIY KIT)

Options
Include Foam Tape?
Color Filter (WHITE set only!)

*Color Filter is only for WHITE digit sets, leave this option blank if not ordering WHITE digit displays.
For color choices, you can refer to the RETROFIT kits page at this time. One set of color filters is included with the price of the WHITE digit sets.


7-DIGIT DISPLAY SETS (DIY KIT)

Options
Include Foam Tape?
Color Filter (WHITE set only!)

*Color Filter is only for WHITE digit sets, leave this option blank if not ordering WHITE digit displays.
For color choices, you can refer to the RETROFIT kits page at this time. One set of color filters is included with the price of the WHITE digit sets.
